High Power Industrial Magnetron Tube 50kW 915MHz Microwave Plasma CVD

Name: High Power Industrial Magnetron Tube 50kW 915MHz Microwave Plasma CVD
Brand: GUOGUANG
Price: 1 USD

Brand Name : GUOGUANG

Model Number : GCWM-9050

Place of Origin : Sichuan, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 200 Pieces per year

Delivery Time : one month

Packaging Details : Export packing-layer board box/carton box

Used for : Industrial microwave heating, Sintering, Thawing, Microwave plasma CVD

Type : Microwave Oven Parts

Frequency : 915MHz

Output Power : 50kW

Contact Now

GCWM-9050 50kW/915MHz CW Magnetron

The GGCK-50 Continuous wave magnetron is a 33cm, fixed-frequency, full-metal-ceramic structure, and direct thermal pure tungsten cathode, high-power microwave tubes. Electromagnet attached to the magnetic field from the outside to offer water-cooled tube, the cathode leads to air-cooled, microwave energy from the axial antenna output, can directly stimulate a rectangular waveguide acting as the microwave power source used for heating.

Main Parameter

Filament Voltage: …………………………………………10.0V

Filament Current:………………………………………… 94.5A

Anode Voltage:……………………………………………14.5kV

Anode Current:………………………………………………4A

Electromagnet Current:…………………………………… 3.95A

Output Power:………………………………………………50kW

Efficiency:…………………………………………………… 87%

High Power Industrial Magnetron Tube 50kW 915MHz Microwave Plasma CVD

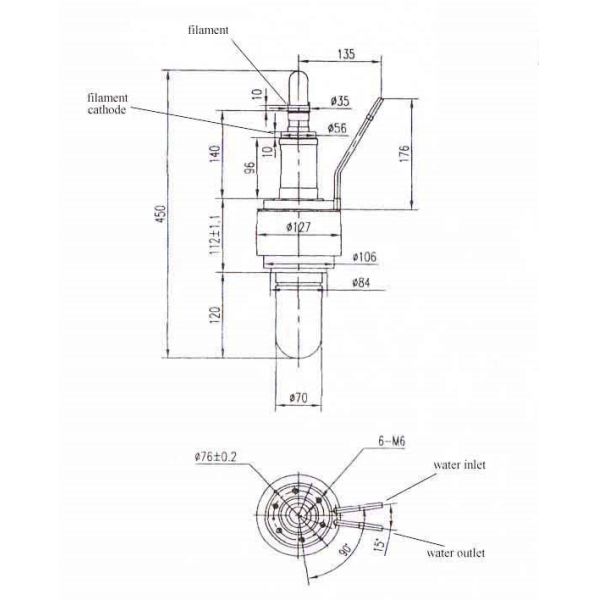

GCWM-9050 50kW-915MHz CW Magnetron size
